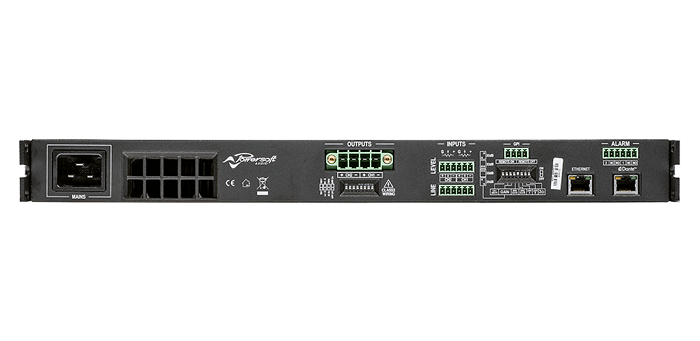

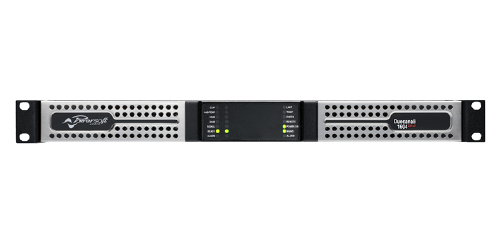

POWERSOFT D1604 DSP+D Installatie eindversterker 2-kanaals

per stuk DSP + DANTE; vanaf 2 Ohm en 70V/100V

Prijs op aanvraag

Artikelcode: D1604DSP+D

0 ster(ren) met 0 review(s) Schrijf een review

De mogelijkheid om elke configuratie te implementeren maakt de Duecanali serie uiterst flexibel. De legendarische efficiëntie van Powersoft bespaart kostbare energie, waardoor zowel de operationele kosten als de 'ecologische voetafdruk' minimaal blijven. De Duecanali 804 DSP is ontworpen om te werken met Lo-Z (vanaf 2 Ω) en met 70V/100V gedistribueerde lijnen: elke gemengde impedantie uitgangsbelasting kan worden gerealiseerd. Een volledig geïntegreerde state-of-the-art DSP biedt uitgebreide functionaliteit voor systeembeheer. Naast sound shaping en limiterfuncties in unieke Powersoft-stijl, ondersteunen de DSP-hardware en ArmoníaPlus-software de optimale installatie van deze professionele versterker in elke omgeving.

Neem contact met ons op voor de levertijd

POWERSOFT D1604 DSP+D Installatie eindversterker 2-kanaals

Specificaties:

Power supply

Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction
Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections - Fully protected circuit design with:

Ac protection: shut down power supply when AC mains voltage is outside operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behavior

General

Fixed frequency switch-mode output stage for high grade sound accuracy
Compact size – all models only 1 RU for reduced rack cost and space
Lightweight – for easier racking and shipping: 7 kg (15.4 lbs)
Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
Remotely switchable double input (main and aux) per channel

Loudspeaker system configuration

Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
Switchable 35Hz / 70Hz high pass filter per channel
Mixed configuration with Lo-Z/Hi-Z systems possible
Bridged mode low impedance per channel pair

Alarms and GPI/O

NC/NO contacts per channel for alarm notifications
Remote ON/OFF switch
Remote VCA control per channel

Digital Signal Processing

TI C6000 DSP platform
AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 100 ms for time alignment
Active DampingControl™ for cable compensation
Peak, RMS voltage, RMS current, TruePower™ limiters

Remote Control & Monitoring

Via software:

Control and diagnostics monitoring via ArmoníaPlus
Dedicated WebApp

Via Hardware:

Attenuation (from 0dB to 26dB)
High-pass filters (35Hz, 70Hz)
Lo-Z/Hi-Z/70V/100V output selection
Adjustable gain (from 26dB to 35 dB)

Output power per Channel

Output power per Channel: 1000 W @ 2 Ω; 800 W @ 4 Ω; 800 W @ 8 Ω
Bridge mode: 2000 W @ 4 Ω; 1600 W @ 8 Ω

Max output voltage / current

Max unclipped output voltage@8 Ω: 115 Vpeak
Current: 45 Apeak

Power supply: Universal, regulated switch mode with PFC (Power Factor Correction)

Nominal power requirement: 100-240 V ±10%, 50-60 Hz
Operating voltage: 90 V – 264 V

Power consumption / current draw

Idle: 115 V: 23.0 W – 0.34 A; 230 V: 23.3 W – 0.21 A
1/8 of max output power @ 4 Ω: 115 V: 267 W – 2.5 A; 230 V: 274 W – 1.5 A

Operating temperature range: 0° – 45° C – 32° – 113° F
Thermal dissipation

Idle: 115 V: 78 BTU/h; 230 V: 79 BTU/h
1/8 of max output power @ 4 Ω: 115 V: 229 BTU/h; 230 V: 251 BTU/h
